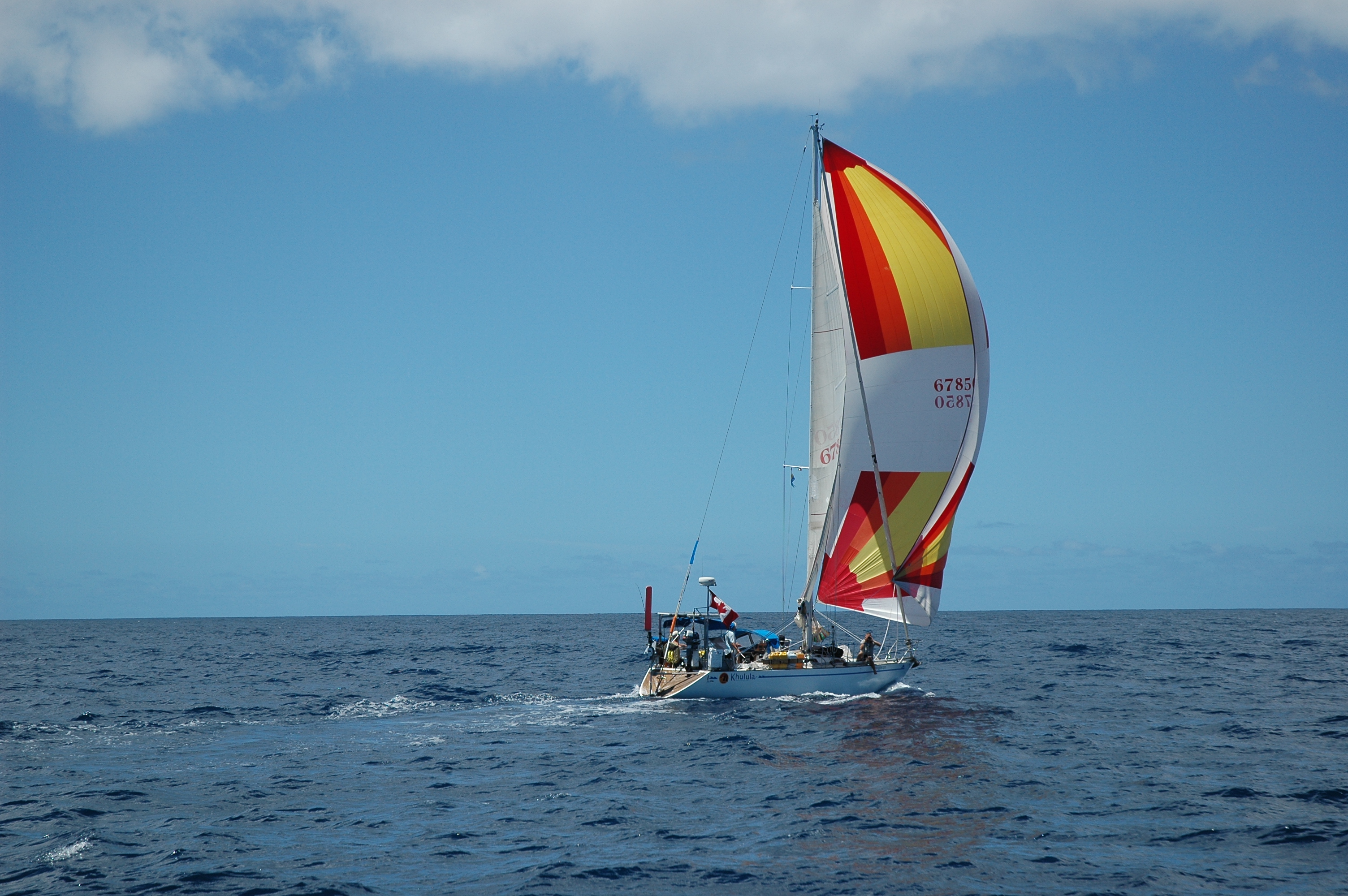

Tradewinds T40 Performance Cruiser Sailboat
“Khulula” (To Run Free in Zulu) is a 40ft Performance Cruiser sailboat designed by Chad Turner of Costa Mesa, California. Chad designed many Swans and Khulula has both the incredibly sleek lines and phenomenal sailing performance of a Swan 40. We have not come across a quicker 40ft cruising boat, which still is extremely comfortable to sail and live aboard. After owning the boat for 4.5 years and completing a circumnavigation of the world in her, we need are looking for someone to take her back out to sea.
For images, take a look at http://www.flickr.com/photos/30272500@N00/sets/72157625038211835/. All items have been reinforced and strengthened for serious offshore cruising. Khulula has just undergone a major refit after completing circumnavigation in 2010.
Hugh Patterson
Hugh.m.patterson@gmail.com
1.604.866.3833
@ indicates items new or rebuilt since 2007
Hull & Specifications:
Year Built: 1981 (Commissioned ’82)
Designed by: Shad Turner, NA
Built by: Tradewinds Marine, Costa Mesa, California
Material: FRP (Fiberglass) Hand Laid Up
Length: Overall – 40.0′
Waterline – 32.0′
Beam: 12.0′
Draft: 6′-5″ (Recast with bulb keel)
Displacement: 15,500 lbs
Keel: Fin-with bulb
Rudder: FRP Fin-blade
Thru-hulls: Bronze w/bronze/brass seacocks @
Hull Coating: – Above waterline, white two-part polyurethane @
– Below waterline, (3) coats of West System Sealer + (3) coats of E-Paint (antifouling done September 2010)
Wheel: 60″ SS with leather cover @
Wenches: (2) Lewmar ST #48
(2) Lewmar 3 spd. #55
(2) Lewmar 2 spd ST #16
(2) Lewmar 2 spd #40
(all rebuilt & serviced in 08) @
Spars and Rigging:
Spinnaker and Whisker Poles: (2) aluminum, deck mounted in chocks @
Mast: Kenyon Spars Keel stepped with aluminum spreaders rebuilt in 1998
Boom: Kenyon Spars
Boom Vang: Garhaur Rigid SS
Standing Rigging: Rod and Cable – V1’s and Forestay replaced @
– All others replaced in 2005.
Furling: Pro Furl
Chain Plates: Heavy Duty Aluminium
Running Rigging – all new halyards, sheets and lines in 2007
Deck:
Bimini: Sunbrella with 1″ SS railing – split for mainsheet and with full enclosure
Dodger: Sunbrella with 1″ SS railing
Companionway Doors: Teak with slide-out windows for screened ventilation
Solid foul weather sliders doors included @
Lifelines: Double SS with gates port and starboard
Boarding Ladder: SS Folding rail – can be mounted on either rail – stows against life lines
BBQ Grill: SS Parker propane rail mounted @
Cockpit cushions: (3) large closed cell foam cockpit cushions, (2) small back cushions @
Deck Coating: Top-coat non-skid @
Covers: Sunbrella – companionway, wheel
Fenders: (5) Various Sizes @
Dock Lines: (4) 3/4″ Nylon @
Cockpit Table: Teak folding
Cockpit Floor: Teak grating
Center Hatch: Lewmar
Forward Hatch: Maxwell 627mm X 627mm @
Flag Halyards: Port & Starboard
Spreader Lights: (2) sealed beam
Dorados: (2) 6 inch @
Spares: Lots of spare blocks, shackles, etc for alternate sail configurations.
Outboard engine hoist.
Sails:
Spinnakers: (2) ½ and ¾ ounce.
Genoa: 135 % @
Jib: 105 %
Blade: 90 % with reduced luff and pendant @
Storm jib: hank-on
Mains: (2) Partially Battened. 1 X @
Downwind Drifter: Attached at forward deck track.
Spares: Spare Spinnaker tape, sticky cloth, thread, palm, everything required for blue water repairs.
Electrical Systems:
Batteries: (4) Flooded 125 Ah (500 Ah total), (1) Sealed Deep Cycle 125 Ah. @
Battery Charger: Xantrex 30 A XC Series, 110/220 V @
Engine Alternator: 75 A Regulated
Battery Switches: (3) Switches to operate each series separately
Solar Panels: (2) 75 W Panels, (1) 45 W with SolarPro CC20 Charge Controller
Battery Monitor: Xantrex with Electrical Shunt @
Inverter: Xantrex Pro Series True Sine Wave 1800 W @
Shore Power Cable: 110 V 30 A with 50ft cord
Engine:
Engine: 2004 Yanmar 4AJH3E 56 HP (2100 Hours)
Fuel Gauge: New in 2007
Thru- Hulls: Bronze
Propeller: 3-Bladed Bronze
Spares: Starter, Fuel Filters (Raycor and Primary), Oil Filters, etc
All Manuals included.
Extra books on diesel maintenance included.
Tanks:
Fuel: 85 Litres
Water: 400 Litres @ in three tanks under settees
Electronics:
GPS: Garmin 76 Navigation GPS with NMEA out to Laptop
VHF: Standard Horizon Intrepid with external and interior mics
Handheld: Standard Horizon with Temp probe. @
SSB/HAM: Icom 706 mkII– reported best signals of all cruising boats on all ocean crossings.
Modem: Pactor IIusb @
Tuner: LDG Electronics Autotuner.
Wind Speed: Raymarine ST60
Depth Sounder: Raymarine ST60
Speed Indicator: Raymarine ST60
Autopilot: Raymarine ST60 with wheel pilot
Radar: Raymarine Pathfinder SL70 2kw 24 Nm range
Stereo: CD/MP3 Player with (4) 6” speakers. (2) Interior, (2) Waterproof exterior. @
Navigation: Toshiba loaded with CMap, TotalTide and all programs required for sailing around the world. @
Water Maker : PUR40E Watermaker -12V – 35 Gal. Per Day includes spares required for re-build@
Barometer, Compass and Ships Clock all mounted in Nav Station
Fans: (4) Fans for tropical tradewinds sailing. @
Search Light: 2 000 000 candle power with cockpit connection
Self-Steering:
Wind Vane: Hydrovane – New in 2007, Complete overhaul in 2010. @
Safety Equipment:
EPIRB: ACR Rapidfix 406, new battery in 2008. @
Life Raft: Windslow, Offshore Model, for 6 people
Ditch Kit: Parachute Flares, Handheld flares, Smoke flares, Flare gun, 150ft of line, Fishing Equipment, Spare VHF, food, mirror, first aid kit, dive knife, mirror, whistle, etc @
Bilge Pumps: (3) Electrical – engine compartment, central cabin and forepeak @
(2) Manual – lazerette compartment (pumped from cockpit), and central cabin @
Throwable Lifesaving devices: Horseshoe (2008), Lifesling, MOB Tether and Pole @
Fire Extinguishers: (3) Forepeak, central cabin and lazerette @
Gas Sniffer: BEP Marine gas sniffer @
Propane Shut-off Solenoid
Smoke Alarm
Ground Tackle:
Windlass: Maxwell 2500 Electrical Windlass
Main Anchor: 35 lb CQR with 180 ft AA 5/16th chain and 80ft of rode
Storm Anchor: 40lb Super-Max anchor (incredible holding in sand/mud/gravel)
Stern Anchor: 22lb Danforth with 50ft chain and 150ft rode
Galley:
Stove: Force 10 – 2 burner Stove and Oven @
Fridge/Freezer: In-counter 12V Fridge Freezer. @
Sinks: Double SS Sinks
Foot Pumps: Fresh and Salt Water Foot Pumps @
Ice Boxes: (2 large) One port and one Starboard
Accommodation:
Sleeps 6 Adults comfortably in 3 double bunks
2 large quarter berths aft – port and starboard
V-Berth Master suite forward
Plus – port pipe berth for passages and full-length settees port and starboard with lee-cloths
Head:
Manual Jabsco Head with rebuild kit. @
